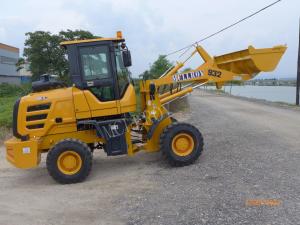

2 Ton Loader Wheel Loader Automatic Assembly Production Line Frame And Axle Fastened
1. Products Description
MCLLROY wheel loader is wildly used in construction, agriculture ,garden,etc. And we are experiencing in making high quality efficiency productivity.Strong power and chassis help to muddy road condition,flexible turning is suitable for small space ,excellent unloading height helpful for loading.
For the axle of this loader, we use cast steel small axle housing. There are iron axle and Isuzu axle on the market. The axles play a key role in loader working and walking. Especially under severe working conditions, the internal forces of the axles is large. A good axle allows users to drive safely and work with confidence.
2. Specification
| MODEL | MCL 932/ZL 932 | Metric Units |
| ENGINE | Engine Model | Yun Nei 490 Supercharged |
| RPM | 2400 |
| Rated Power | 58 kW |
| Emissions | EU Stage II |
| WEIGHTS | Operating Weight | 3670 kg |
| Rated Load | 1800 kg |
| BUCKETS | Bucket Capacities | 0.6-1.0 m³ |
| TRANSMISSION | Max. Travel Speed | 28 km/h |
| Gear Box | CVT
265 torque converter |
| Axle | Small hub |
| Axle Base | 2210 mm |
| Brake | Disc Brake |
| HYDRAULIC SYSTEM | Hydraulic Cycle time - lift | ≤ 7 s |
| DIMENSIONS(APPROXIMATE) | Min. Ground Clearance | 290 mm |
| Wheel Base | 1490 mm |
| Reach at Max.Dump Height | 3200 mm |
| Dump Reach | ≤ 650 mm |
| Overall Length - With Bucket | 5300 mm |
| Overall Width | 1820 mm |
| Overall Height | 2670 mm |
| OPERATING SPECIFICATIONS | Tyre Size | 20.5-16 |
| Breakout Force | 40 KN |
| Joystick | Machanical |
| Min. turning radius | ≤ 7000 mm |
| STANDARD EQUIPMENT | Hour meter | Yes |
| Tool Box | Yes |
| Dual Hight&Low Speed Handle | Yes |
| OPTIONAL EQUIPMENT | Air Conditioning/heater | Option |
| Quick Change | Option |
| Multifunctional Attachment | Option |
| Hydraulic Pilot | Option |
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Tire:A variety of patterns to adapt to different perorations ,solid tires available.
2) Frame:Strong hinge joint.
3) Cab:
I. Electronic oil level indicator.
II. Comfortable seat with safety belt.
III. Intelligent instrument.
IV. Pilot valve hydraulic operation.
4) Wide-opening hood for easier servicing & maintenance of engine.
5) MCLLROY design engine cover,automatic power-off electronic flame-out ,no knife.
4.Production lines:
A complete production process mainly includes: material procurement-steel plate cutting-welding-spray painting -drying-assembly-inspection
Assembly:
Our factory arrange seven steps for assembly. There are over a thousand parts in a loader. I will talk about assembly of major components.
First, our workers will assemble the front frame, rear frame, swing frame, front axle, rear axle together, and then install air tank, relief valve, air booster pump on the frame.
At this step, the worker should pay attention to the tightness of the screws and adjust the gap: for example, the hinged part is not supposed to move up and down and must be tight (can be shaken left and right); there is also a gap between the swing frame and rear frame, which can be moved up and down, but not back and forth; and Gear oil should be added to the front and rear axles.
